8-channel gamma-voltage generator with adjustable gain, Vcom, and 1/2 AVDD topology. Features 8 independent circuits, each capable of 300mA output current. Operates from a 9V to 20V supply voltage range with a maximum input voltage of 20V. Surface mountable in a 20-VQFN package with gold contact plating. Offers a 45V/µs slew rate and operates across a -40°C to 85°C temperature range.
PackageVQFN
Current940uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BUF08630RGWT technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Lead Free
Lead Free
Max Input Voltage
20V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
20V
Min Supply Voltage
9V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
8
Number of Circuits
8
Operating Supply Current
940uA
Output Current
300mA
Output Current per Channel
300mA
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
BUF08630
Slew Rate
45V/µs
Supply Current
940uA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BUF08630RGWT Datasheet
Download the complete datasheet for Texas Instruments BUF08630RGWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

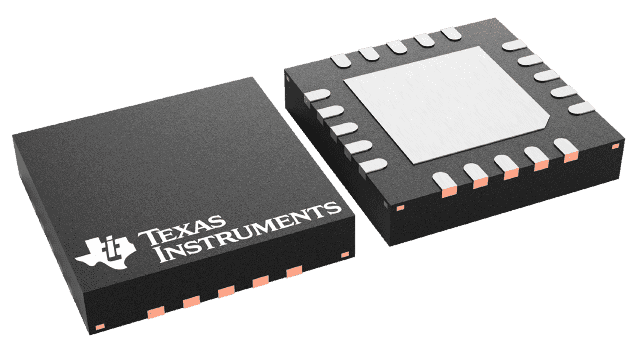

Product Images
