Technical Specifications
Texas Instruments BUF11702PWP technical specifications.
General
-3db Bandwidth
1MHz
Package/Case
HTSSOP
Contact Plating
Gold
Input Bias Current
1pA
Input Offset Voltage (Vos)
12mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Power Dissipation
3.5W
Max Supply Voltage
16V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
10
Number of Circuits
10
Operating Supply Current
2.5mA
Output Current
150mA
Package Quantity
50
Packaging
Rail/Tube
RoHS Compliant
Yes
Slew Rate
1V/µs
Supply Current
3.7mA
Voltage Gain
0.004dB
Weight
0.00418oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BUF11702PWP Datasheet
Download the complete datasheet for Texas Instruments BUF11702PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

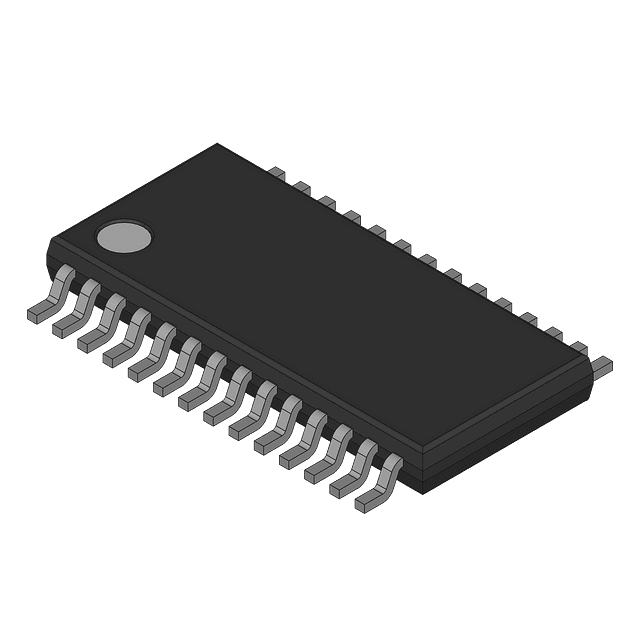

Product Images
