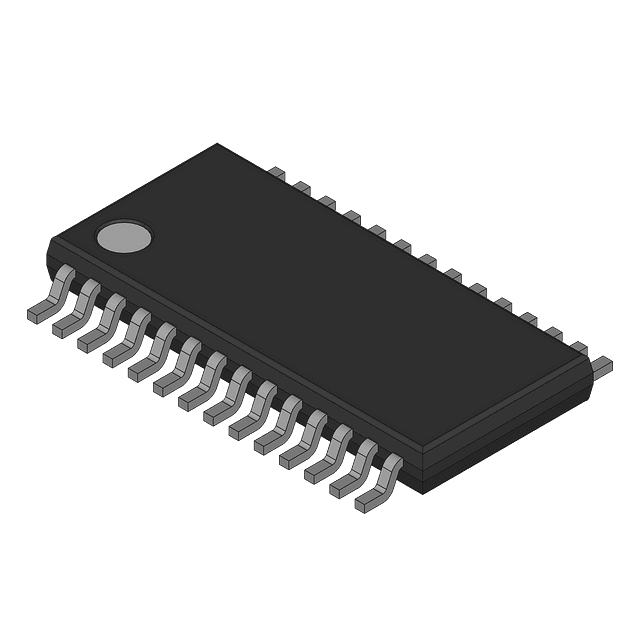

The BUF11702PWPR is a 10-channel buffer amplifier with a -3dB bandwidth of 1MHz and an output current of 150mA. It is packaged in a 28-pin HTSSOP and is suitable for surface mount applications. The device operates over a temperature range of 0°C to 85°C and is compliant with RoHS regulations. The maximum power dissipation is 3.5W and the maximum supply voltage is 16V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments BUF11702PWPR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments BUF11702PWPR technical specifications.
| -3db Bandwidth | 1MHz |
| Package/Case | HTSSOP |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 12mV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 3.5W |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 10 |
| Number of Circuits | 10 |
| Operating Supply Current | 2.5mA |
| Output Current | 150mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | BUF11702 |
| Slew Rate | 1V/µs |
| Supply Current | 3.7mA |
| Weight | 0.00418oz |
| RoHS | Compliant |
