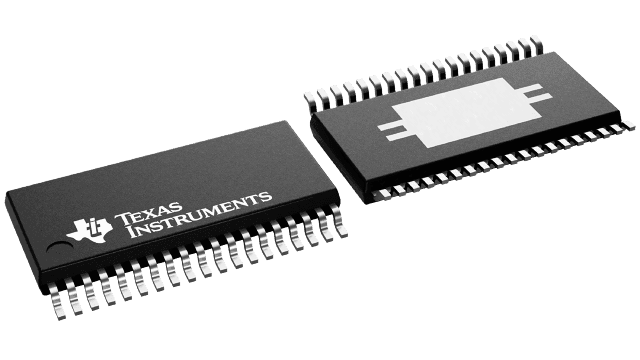

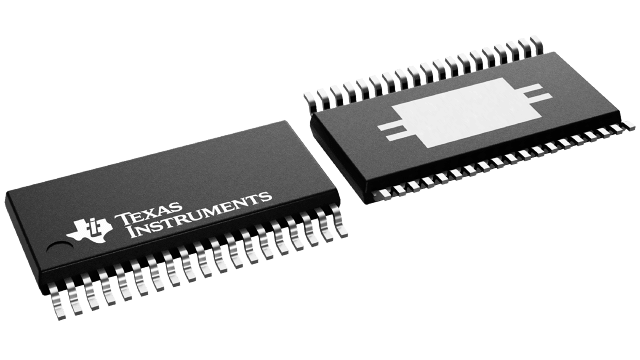

The BUF22821AIDCPR is a 22-channel, 24-circuit special purpose amplifier from Texas Instruments. It is packaged in a lead-free HTSSOP EP package and features gold contact plating. The device operates over a temperature range of -40°C to 95°C and is RoHS compliant. The amplifier has a maximum operating supply current of 12mA and an output current of 30mA per channel. It is available in a tape and reel packaging format with 2000 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments BUF22821AIDCPR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments BUF22821AIDCPR technical specifications.
| Package/Case | HTSSOP EP |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Max Operating Temperature | 95°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 22 |
| Number of Circuits | 24 |
| Operating Supply Current | 12mA |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.004441oz |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments BUF22821AIDCPR to view detailed technical specifications.
