Dual-bit, dual-supply bus transceiver for automotive applications, featuring configurable voltage translation and 3-state outputs. This CMOS logic IC supports bidirectional data flow at up to 500Mbps with a 2.4ns propagation delay. Operating from 1.2V to 3.6V, it offers ±12mA output current and a wide temperature range of -40°C to 125°C. Packaged in an 8-VSSOP for surface mounting, it is lead-free and RoHS compliant.
PackageVSSOP
Current10uA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CAVC2T45TDCURQ1 technical specifications.
General
Package/Case
VSSOP
Channel Type
Bidirectional
Contact Plating
Gold
Data Rate
500Mbps
Direction
Bidirectional
High Level Output Current
-12mA
Lead Free
Lead Free
Logic Function
Translator, Transceiver
Low Level Output Current
12mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
2
Number of Channels
2
Number of Circuits
1
Number of Elements
1
Output Type
3-STATE
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
2.4ns
Quiescent Current
20uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, 74AVC
Supply Current
10uA
Technology
CMOS
Turn-On Delay Time
14.1ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CAVC2T45TDCURQ1 Datasheet
Download the complete datasheet for Texas Instruments CAVC2T45TDCURQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

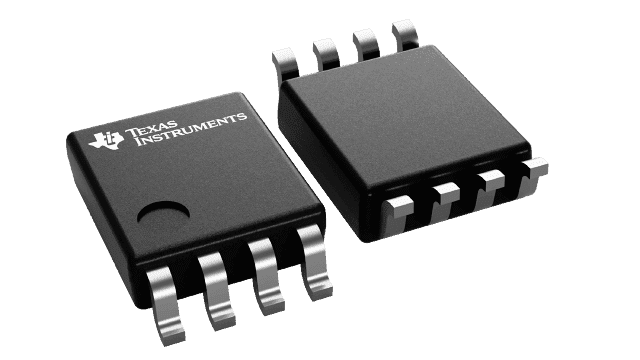

Product Images
