Cellular RF and baseband circuit for telecommunications applications. Features a 940 MHz operating frequency with a 402 MHz to 940 MHz frequency range and 470.94 GHz bandwidth. Supports a 153.6 Kbps data rate and 10 dBm output power. Operates from a 2.3V to 3.6V supply voltage, with a typical 3V operating voltage and 33.1mA transmitting current. Surface mountable in a 5mm x 5mm QFN package.
Frequency940MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC1070-RTY1 technical specifications.
General
Bandwidth
470.94GHz
Package/Case
QFN
Current - Transmitting
33.1mA
Data Rate
153.6Kbps
Depth
5mm
Frequency
940MHz
Lead Free
Contains Lead
Length
5mm
Max Frequency
940MHz
Min Frequency
402MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Operating Frequency
940 MHz
Operating Supply Voltage
3V
Output Power (dBm)
10dBm
Package Quantity
490
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC1070-RTY1 Datasheet
Download the complete datasheet for Texas Instruments CC1070-RTY1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

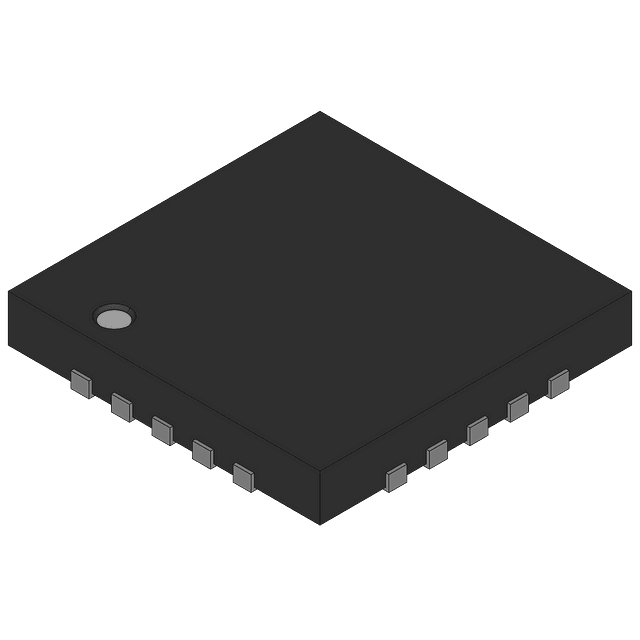

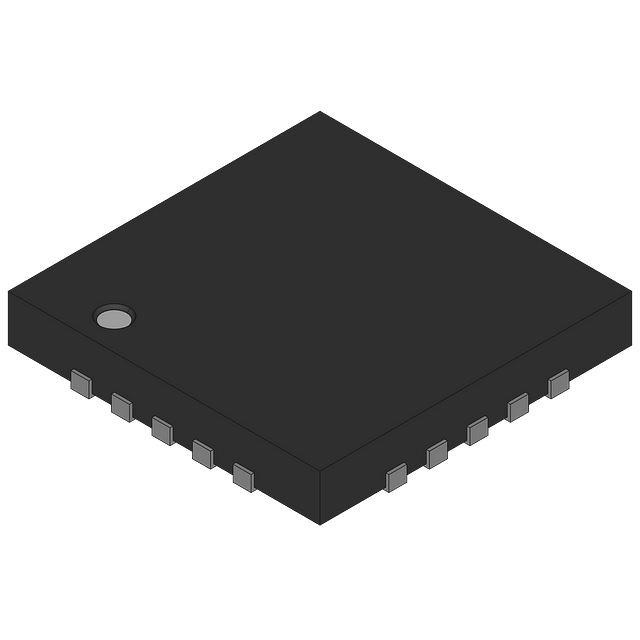

Product Images
