RF and Wireless IC featuring an 8051 core architecture, this component operates across multiple frequency bands from 300 MHz to 928 MHz. It supports data rates up to 500Kbps and offers a 10dBm output power with a sensitivity of -112dBm. Integrated interfaces include USART, SPI, and 3-wire, with 21 GPIO pins available. The device is housed in a QFN 36-pin package, suitable for surface mounting, and operates on a supply voltage range of 2V to 3.6V.
Frequency928MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC1110F32RSPR technical specifications.
General
Package/Case
QFN
Core Architecture
8051
Current - Receiving
21.5mA
Current - Transmitting
36.2mA
Data Bus Width
16b
Data Rate
500Kbps
Frequency
928MHz
Interface
USART, SPI, 3-WIRE
Lead Free
Contains Lead
Max Frequency
928MHz
Min Frequency
300MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Min Supply Voltage
2V
Mount
Surface Mount
Number of GPIO
21
Number of I/Os
21
Number of Timers/Counters
3
Operating Frequency
300 MHz to 348 MHz, 391 MHz to 464 MHz, 782 MHz to 928 MHz
Output Power (dBm)
10dBm
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-112dBm
Technology
CMOS
Weight
0.003266oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC1110F32RSPR Datasheet
Download the complete datasheet for Texas Instruments CC1110F32RSPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

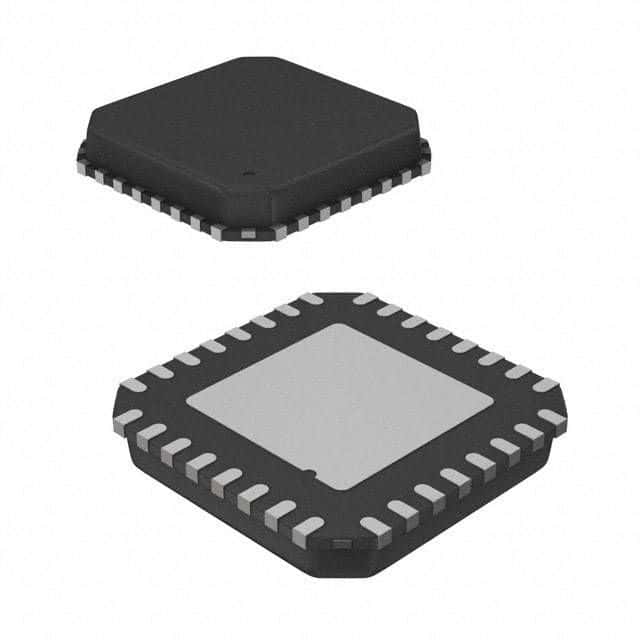

Product Images
