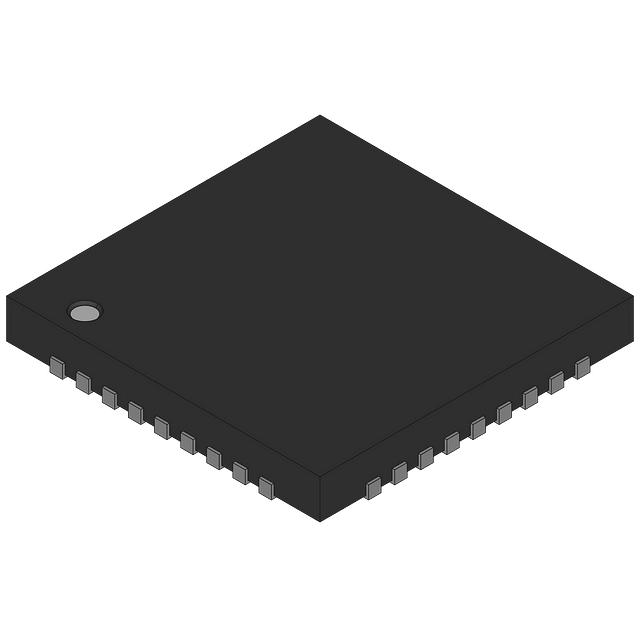

CMOS RF and baseband circuit for wireless communication, featuring an 8051 core architecture and 16-bit data bus width. Operates across multiple frequency bands including 300-348 MHz, 391-464 MHz, and 782-928 MHz, with a data rate up to 500Kbps and a sensitivity of -112dBm. This surface mount component is housed in a 6x6mm QFN package with 21 GPIO and supports USART, SPI, and 3-wire interfaces. Power consumption includes 21.5mA receiving and 36.2mA transmitting, with a supply voltage range of 2V to 3.6V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CC1110F8RSP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Contact Plating | Copper, Tin, Matte |
| Core Architecture | 8051 |
| Current - Receiving | 21.5mA |
| Current - Transmitting | 36.2mA |
| Data Bus Width | 16b |
| Data Rate | 500Kbps |
| Frequency | 928MHz |
| Height | 0.9mm |
| Interface | USART, SPI, 3-WIRE |
| Lead Free | Contains Lead |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Memory Size | 1KB |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of GPIO | 21 |
| Number of I/Os | 21 |
| Number of Timers/Counters | 3 |
| Operating Frequency | 300 MHz to 348 MHz, 391 MHz to 464 MHz, 782 MHz to 928 MHz |
| Package Quantity | 490 |
| Packaging | Tray |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Sensitivity | -112dBm |
| Technology | CMOS |
| Weight | 0.003266oz |
| Width | 6mm |
| RoHS | Compliant |
