2.4GHz RF Transceiver IC with 8051 core architecture, supporting Zigbee and O-QPSK modulation. Features 128KB FLASH memory, 8KB RAM, and an 8-bit data bus. Operates from 2V to 3.6V with a 250Kbps data rate and a frequency range of 2.4GHz to 2.4835GHz. Offers 26dBm output power and -92dBm sensitivity, with multiple serial interface options including SPI and UART. Packaged in a VQFN EP, surface mountable, lead-free, and RoHS compliant component.
Frequency2.4GHz
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2430F128RTC technical specifications.
General
| Package/Case | VQFN EP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Data Rate | 250Kbps |
| Frequency | 2.4GHz |
| Height | 0.9mm |
| Interface | SPI, UART, 2-Wire, 3-WIRE, 4-WIRE, Serial, USART |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Frequency | 2.4835GHz |
| Max Operating Temperature | 85°C |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Frequency | 2.4GHz |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 21 |
| Number of Programmable I/O | 21 |
| Number of Timers/Counters | 4 |
| Output Power (dBm) | 0dBm |
| Package Quantity | 260 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | -92dBm |
| Series | CC2430 |
| Technology | CMOS |
| Termination | SMD/SMT |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CC2430F128RTC Datasheet
Download the complete datasheet for Texas Instruments CC2430F128RTC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

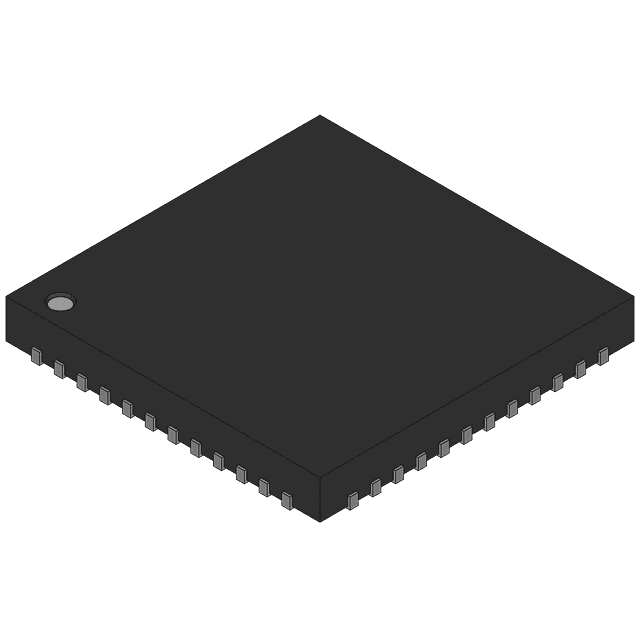

Product Images
