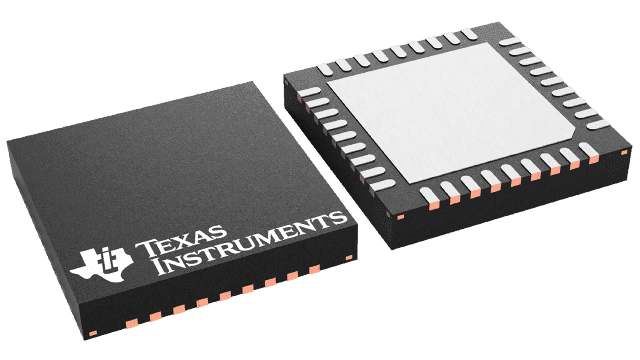

2.4 GHz radio transceiver with integrated 8051 MCU and 8 kB Flash memory. Features 8-bit data bus, 21 GPIO pins, and 1024B RAM. Operates from 2V to 3.6V supply with receiving current of 17.1mA and transmitting current of 16mA. Offers SPI and UART interfaces, with a sensitivity of -103dBm. Surface mountable in a VQFN package, operating from -40°C to 85°C.
Frequency2.483GHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2510F8RHHR technical specifications.
General
Package/Case
VQFN
Core Architecture
8051
Current - Receiving
17.1mA
Current - Transmitting
16mA
Data Bus Width
8b
Density
8192B
Frequency
2.483GHz
Interface
SPI, UART
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
4KB
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of GPIO
21
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
1024B
RoHS Compliant
Yes
Sensitivity
-103dBm
Series
CC2510F8
Technology
CMOS
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2510F8RHHR Datasheet
Download the complete datasheet for Texas Instruments CC2510F8RHHR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
