2.4 GHz radio transceiver IC featuring an 8051 MCU, 16KB flash memory, and full-speed USB interface. Operates with a 3.3V supply voltage, supporting a frequency of 2.483GHz and data rates up to 500Kbps. Offers SPI and UART interfaces, 21 GPIO pins, and a sensitivity of -103dBm. Packaged in a 36-VQFN with copper, tin, and lead plating, suitable for surface mounting. Operating temperature range from -50°C to 150°C.
Frequency2.483GHz
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2511F16RSPR technical specifications.
General
Package/Case
VQFN EP
Contact Plating
Copper, Tin, Lead
Current - Receiving
17.1mA
Current - Transmitting
16mA
Data Bus Width
8b
Data Rate
500Kbps
Density
16384B
Frequency
2.483GHz
Interface
SPI, UART
Lead Free
Lead Free
Max Operating Temperature
150°C
Max Supply Voltage
3.6V
Memory Size
4KB
Min Operating Temperature
-50°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of GPIO
21
Operating Supply Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
2048B
RoHS Compliant
Yes
Sensitivity
-103dBm
Series
CC2511
Technology
CMOS
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2511F16RSPR Datasheet
Download the complete datasheet for Texas Instruments CC2511F16RSPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

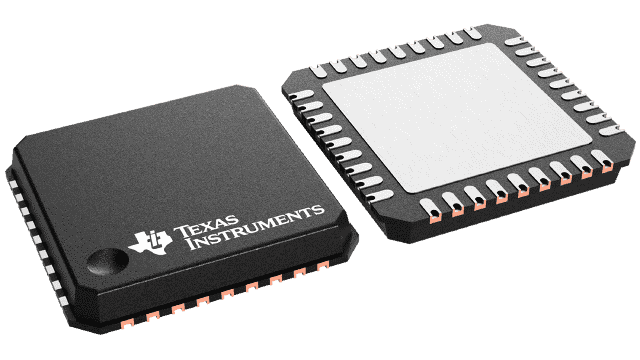

Product Images
