Texas Instruments
CC2530F128RHAT
2.4GHz Zigbee/802.15.4 Wireless MCU, 128KB Flash, 8KB RAM, 8051, VQFN
2.4GHz IEEE 802.15.4 and RF4CE wireless MCU with 128KB FLASH and 8KB RAM. Features an 8051 core, 250Kbps data rate, and 4.5dBm output power. Operating frequency range is 2.394GHz to 2.507GHz with sensitivity of -97dBm. Includes 8 ADC channels, 21 GPIO, 4 timers, and SPI, USART, UART, and 2-Wire interfaces. Packaged in a 6mm x 6mm x 0.9mm VQFN with gold contact plating, suitable for surface mounting.
Frequency2.4GHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2530F128RHAT technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Core Architecture
8051
Current - Receiving
24.3mA
Current - Transmitting
33.5mA
Data Bus Width
8b
Data Rate
250Kbps
Frequency
2.4GHz
Height
0.9mm
Interface
SPI, USART, UART, 2-Wire
Lead Free
Lead Free
Length
6mm
Max Frequency
2.507GHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Frequency
2.394GHz
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
8
Number of GPIO
21
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
4
Number of UART Channels
1
Operating Frequency
2.4 GHz
Output Power (dBm)
4.5dBm
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-97dBm
Technology
CMOS
Thickness
900um
Watchdog Timer
Yes
Weight
0.002776oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2530F128RHAT Datasheet
Download the complete datasheet for Texas Instruments CC2530F128RHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

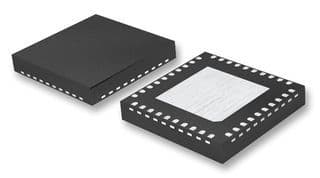

Product Images
