802.15.4/ZigBee/RF4CE System-on-Chip (SoC) operating at 2.4GHz with a data rate of 250Kbps. Features 64KB FLASH memory, 8KB RAM, and an 8-bit 8051 core. Offers 21 GPIOs, 4 timers, 1 UART, SPI, and 2-Wire interfaces. Operates from 2V to 3.6V with a transmit power of 4.5dBm and a receive sensitivity of -97dBm. Packaged in a 40-pin VQFN with gold plating, suitable for surface mounting.
Frequency2.4GHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2530F64RHAT technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Core Architecture
8051
Current - Receiving
24mA
Current - Transmitting
29mA
Data Bus Width
8b
Data Rate
250Kbps
Frequency
2.4GHz
Height
0.95mm
Interface
SPI, UART, 2-Wire, USART
Lead Free
Lead Free
Length
6.15mm
Max Frequency
2.507GHz
Memory Size
64KB
Memory Type
FLASH,
Min Frequency
2.394GHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
8
Number of GPIO
21
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
4
Number of UART Channels
1
Operating Frequency
2.4 GHz
Output Power (dBm)
4.5dBm
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-97dBm
Series
CC2530
Watchdog Timer
Yes
Weight
0.002822oz
Width
6.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2530F64RHAT Datasheet
Download the complete datasheet for Texas Instruments CC2530F64RHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

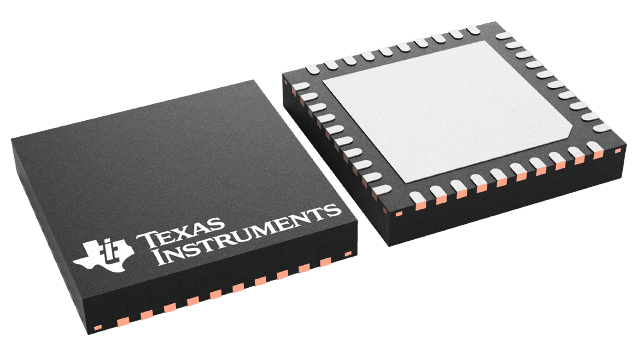

Product Images
