2.4GHz IEEE 802.15.4 and Zigbee wireless MCU with 250Kbps data rate. Features 8KB RAM, 21 GPIO, and SPI, USB, USART interfaces. Operates from 2V to 3.6V supply, with a temperature range of -40°C to 125°C. Offers 4.5dBm output power and -97dBm sensitivity. Surface mount VQFN package with gold contact plating.
Frequency2.4GHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2531F128RHAR technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Current - Receiving
24.3mA
Current - Transmitting
33.5mA
Data Rate
250Kbps
Frequency
2.4GHz
Interface
SPI, USB, USART
Lead Free
Lead Free
Max Frequency
2.507GHz
Min Frequency
2.394GHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Min Supply Voltage
2V
Mount
Surface Mount
Number of Channels
8
Number of GPIO
21
Number of UART Channels
1
Output Power (dBm)
4.5dBm
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-97dBm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2531F128RHAR Datasheet
Download the complete datasheet for Texas Instruments CC2531F128RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

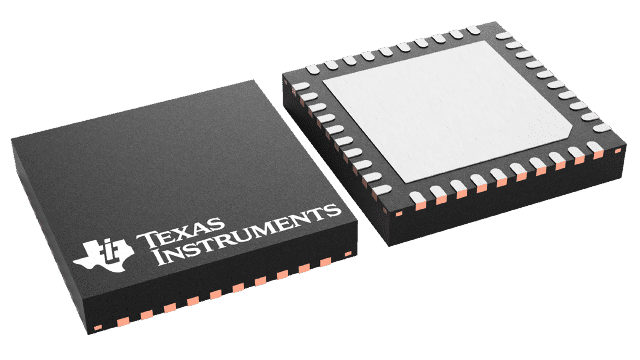

Product Images
