Bluetooth v4.0 (BLE) SMART System-on-Chip (SoC) module operating at 2.4GHz, supporting 1Mbps data rates. Features an 8051 core architecture with 8KB RAM and 8KB memory. Offers SPI and UART interfaces, 21 GPIO pins, and 2 ADC channels. Operates within a 2V to 3.6V supply voltage range, with a maximum supply current of 400uA. Packaged in a 40-pin VQFN with gold contact plating, suitable for tape and reel packaging.
Frequency2.4GHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments CC2540F128RHAT technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Core Architecture
8051
Current - Receiving
22.1mA
Current - Transmitting
31.6mA
Data Bus Width
8b
Data Rate
1Mbps
Frequency
2.4GHz
Height
0.9mm
Interface
SPI, UART
Lead Free
Lead Free
Length
6mm
Max Frequency
2.48GHz
Min Frequency
2.402GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
400uA
Max Supply Voltage
3.6V
Memory Size
8KB
Min Supply Voltage
2V
Moisture Sensitivity Level
3
Number of ADC Channels
3
Number of GPIO
21
Number of Timers/Counters
21
Number of UART Channels
1
Operating Frequency
2.4 GHz
Output Power (dBm)
4dBm
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-93dBm
Series
CC2540
Technology
CMOS
Weight
0.003668oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2540F128RHAT Datasheet
Download the complete datasheet for Texas Instruments CC2540F128RHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

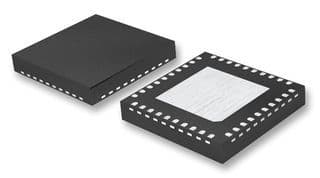

Product Images
