Bluetooth v4.0 SMART System-on-Chip (SoC) module featuring an 8051 core architecture. Operates in the 2.4GHz frequency band with a 2Mbps data rate and Class II output power of 0dBm. Offers 8KB of FLASH memory and 8KB of RAM, with 23 programmable I/O pins. Supports I2C, SPI, USART, and UART interfaces, with a single UART channel. Designed for a 2V to 3.6V operating supply voltage, with a minimum sensitivity of -99dBm. Packaged in a 40-pin VQFN with gold contact plating, supplied on tape and reel.
Frequency2.4GHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments CC2541F128RHAR technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Core Architecture
8051
Current - Receiving
20.2mA
Current - Transmitting
18.2mA
Data Bus Width
8b
Data Rate
2000Kbps
Frequency
2.4GHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of GPIO
23
Number of I/Os
23
Number of Programmable I/O
23
Number of Timers/Counters
4
Number of UART Channels
1
Operating Supply Voltage
3.6V
Output Power (dBm)
0dBm
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Sensitivity
-99dBm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2541F128RHAR Datasheet
Download the complete datasheet for Texas Instruments CC2541F128RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

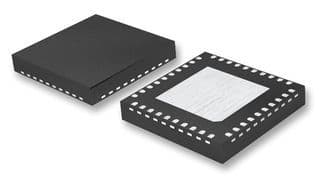

Product Images
