Frequency2.4GHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2550RST technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Current - Transmitting
21.3mA
Data Rate
500Kbps
Depth
4mm
Frequency
2.4GHz
Lead Free
Contains Lead
Length
4mm
Max Frequency
2.4835GHz
Min Frequency
2.4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Operating Frequency
2483.5 MHz
Operating Supply Voltage
3.3V
Output Power (dBm)
1dBm
Package Quantity
490
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2550RST Datasheet
Download the complete datasheet for Texas Instruments CC2550RST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

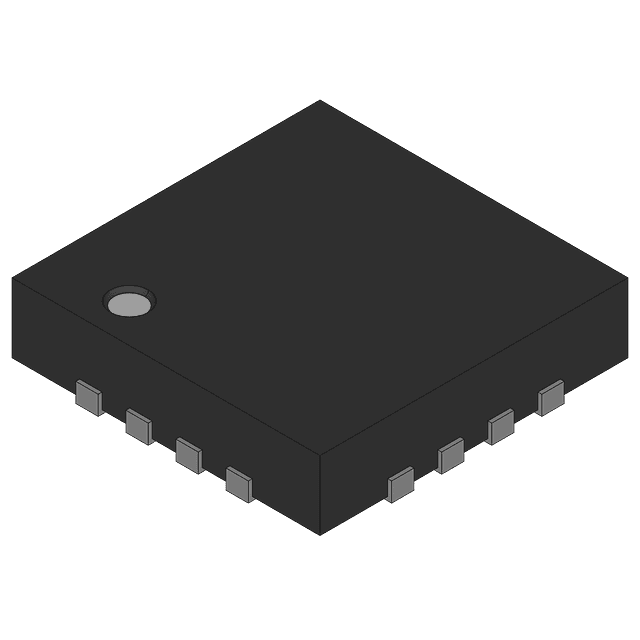

Product Images
