16-bit ultra-low-power wireless microcontroller featuring an MSP430 core, operating at up to 20MHz. This integrated circuit offers 8KB of Flash memory and 2KB of RAM, supporting I2C, SPI, and UART interfaces with 30 programmable I/O pins. Designed for sub-1GHz wireless applications, it boasts a sensitivity of -117dBm and operates across a wide temperature range of -40°C to 85°C. Power consumption is minimal, with 18.5mA during receiving and 36mA during transmitting, and it operates from a 1.8V to 3.6V supply.
Frequency20MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments CC430F5123IRGZR technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Core Architecture
MSP430
Current - Receiving
18.5mA
Current - Transmitting
36mA
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
8KB
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of GPIO
30
Number of I/Os
30
Number of Programmable I/O
30
Number of Timers/Counters
2
Number of UART Channels
1
Operating Frequency
300 MHz to 928 MHz
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Sensitivity
-117dBm
Series
CC430F5123
Watchdog Timer
Yes
Weight
0.004938oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC430F5123IRGZR Datasheet
Download the complete datasheet for Texas Instruments CC430F5123IRGZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

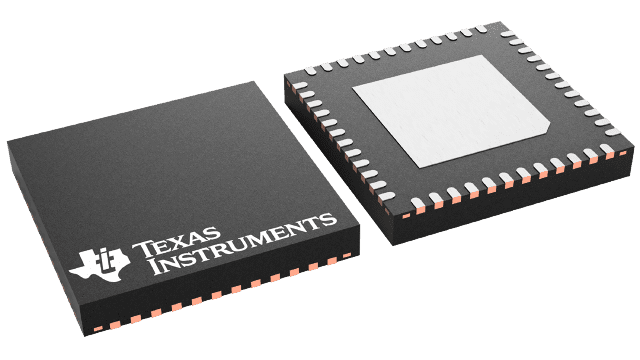

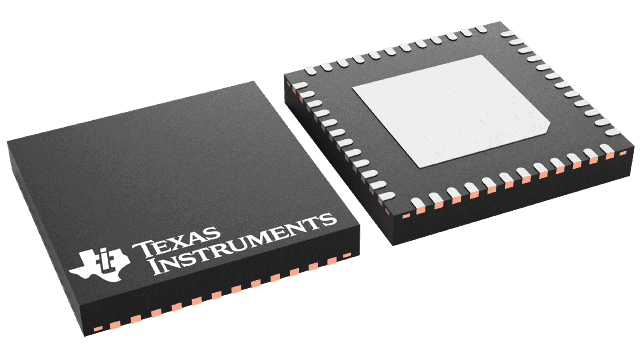

Product Images
