The CD4001BF3A is a 4-bit NOR gate IC from Texas Instruments, packaged in a CDIP with a maximum operating temperature range of -55°C to 125°C. It can handle a maximum supply voltage of 18V and a minimum supply voltage of 3V. The IC has a propagation delay of 90ns and a quiescent current of 5uA. It is not RoHS compliant and contains lead in its contact plating.
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD4001BF3A technical specifications.
General
| Package/Case | CDIP |
| Contact Plating | Tin, Lead |
| High Level Output Current | -4.2mA |
| Lead Free | Contains Lead |
| Logic Function | NOR GATE |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Outputs | 1 |
| Packaging | Rail/Tube |
| Propagation Delay | 90ns |
| Quiescent Current | 5uA |
| RoHS Compliant | No |
| Technology | CMOS |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments CD4001BF3A Datasheet
Download the complete datasheet for Texas Instruments CD4001BF3A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

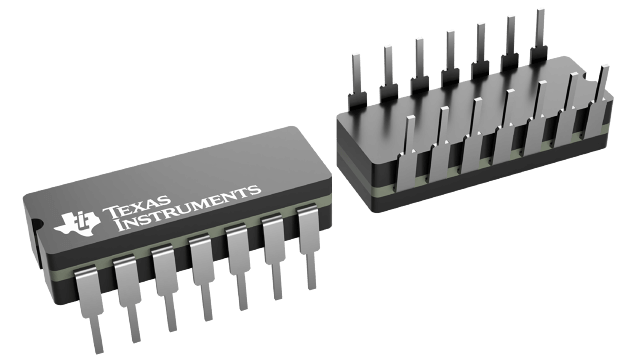

Product Images
