CD4002BE

Datasheet

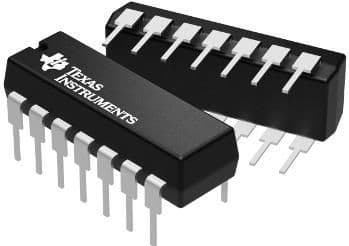

2-Ch, 4-Input NOR Gate IC, CMOS, 3-18V, 14-PDIP

Texas Instruments

CD4002BE

Name: CD4002BE Texas Instruments
Brand: Texas Instruments
SKU: CD4002BE

Active

2-Ch, 4-Input NOR Gate IC, CMOS, 3-18V, 14-PDIP

Dual 4-input NOR gate IC, CMOS technology, operating from 3V to 18V. Features two independent NOR gate circuits, each with four input lines and one output line. Offers a maximum output current of 6.8mA, with high-level output current at -4.2mA and low-level output current at 4.2mA. Maximum power dissipation is 500mW, with a quiescent current of 5uA. This through-hole mounted component is packaged in a 14-PDIP and operates across a temperature range of -55°C to 125°C.

PackagePDIP

MountingThrough Hole

Power500mW

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

Texas Instruments CD4002BE technical specifications.

General

Package/Case	PDIP
Height	4.57mm
High Level Output Current	-4.2mA
Lead Free	Lead Free
Length	19.3mm
Logic Function	NOR GATE
Low Level Output Current	4.2mA
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Output Current	6.8mA
Max Power Dissipation	500mW
Max Supply Voltage	18V
Min Supply Voltage	3V
Mount	Through Hole
Number of Bits	2
Number of Circuits	2
Number of Elements	2
Number of Gates	2
Number of Input Lines	4
Number of Inputs	4
Number of Output Lines	1
Number of Outputs	1
Output Current	6.8mA
Package Quantity	25
Packaging	Rail/Tube
Power Dissipation	500mW
Propagation Delay	90ns
Quiescent Current	5uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Schmitt Trigger Input	No
Series	4000B
Technology	CMOS
Termination	Through Hole
Turn-On Delay Time	120ns
Weight	0.032734oz
Width	6.35mm
