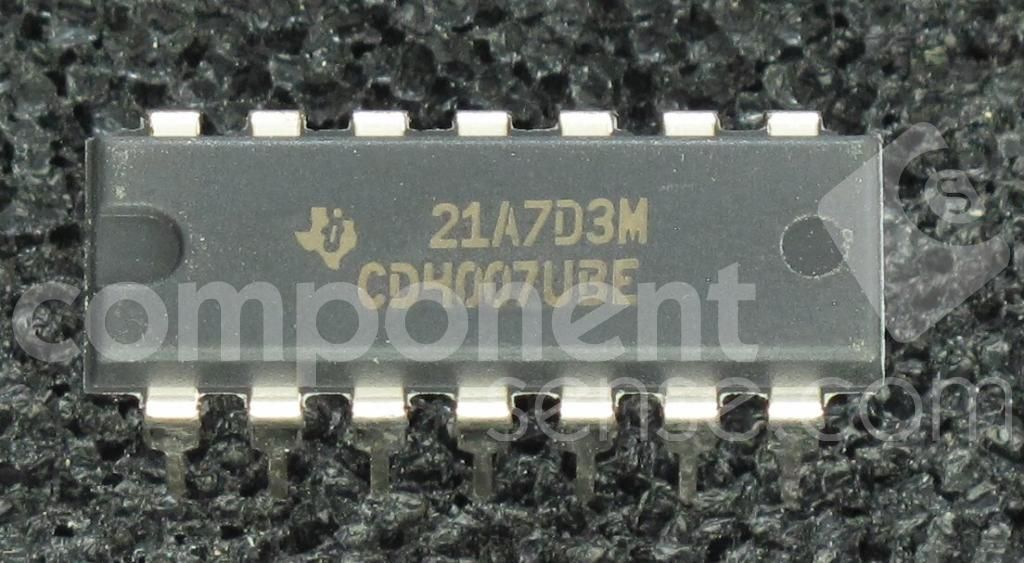

CMOS dual complementary pair plus inverter, this integrated circuit features 3 input lines and 3 output lines, with 2 circuits and 2 gates. Operating within a 3V to 18V supply voltage range, it offers a low-level output current of 4.2mA and a high-level output current of -4.2mA, with a maximum output current of 6.8mA. The component boasts a wide operating temperature range from -55°C to 125°C and a propagation delay of 110ns. Packaged in a 14-PDIP with gold contact plating, it supports through-hole mounting and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CD4007UBE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Contact Plating | Gold |
| Height | 4.57mm |
| High Level Output Current | -4.2mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | Inverter |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 6.8mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Channels | 3 |
| Number of Circuits | 2 |
| Number of Elements | 1 |
| Number of Gates | 2 |
| Number of Input Lines | 3 |
| Number of Inputs | 1 |
| Number of Output Lines | 6 |
| Number of Outputs | 3 |
| Output Current | 6.8mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Inverting |
| Propagation Delay | 110ns |
| Quiescent Current | 5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 4000B |
| Technology | CMOS |
| Termination | Through Hole |
| Turn-On Delay Time | 110ns |
| Weight | 0.032734oz |
| Width | 6.35mm |
| RoHS | Compliant |
