PackageCDIP
MountingThrough Hole
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments CD4009UBF3A technical specifications.
General
Package/Case
CDIP
High Level Output Current
-1.65mA
Lead Free
Contains Lead
Logic Function
Buffer
Low Level Output Current
30mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
6
Number of Channels
6
Number of Elements
6
Number of Inputs
6
Number of Outputs
6
Packaging
Rail/Tube
Polarity
Inverting
Propagation Delay
140ns
Quiescent Current
20uA
RoHS Compliant
No
Technology
CMOS
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments CD4009UBF3A Datasheet
Download the complete datasheet for Texas Instruments CD4009UBF3A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

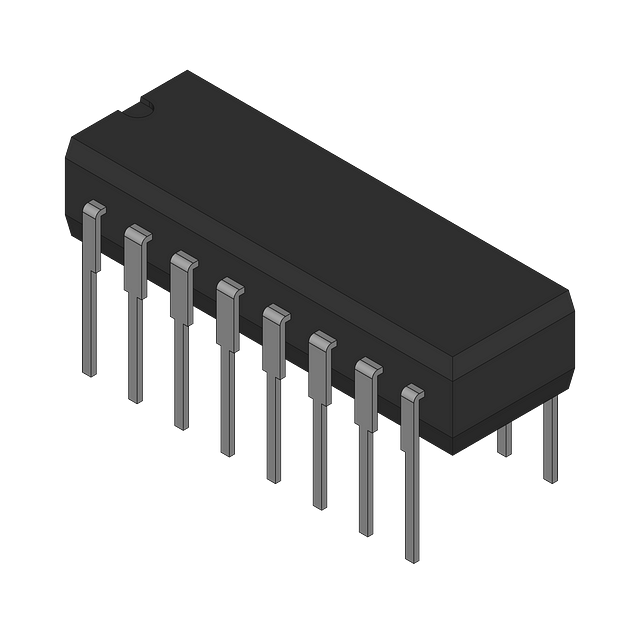

Product Images
