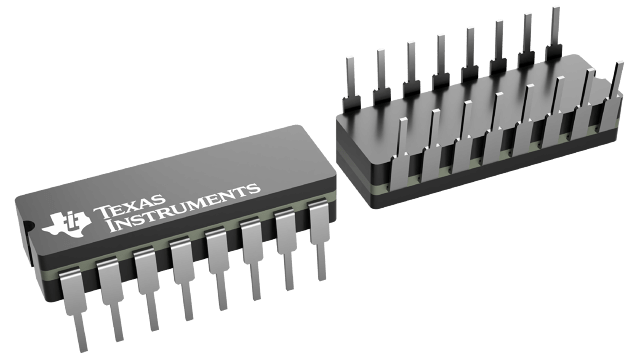

The CD40109BF3A is a 4-bit level shifter with 3-state output, fabricated using CMOS technology. It operates over a temperature range of -55°C to 125°C and can supply up to 4.2mA of current at low level output. The device is available in a CDIP package and is not RoHS compliant due to the presence of lead. The propagation delay is 240ns, and the quiescent current is 20uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CD40109BF3A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| High Level Output Current | -4.2mA |
| Lead Free | Contains Lead |
| Logic Function | Level Shifter |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Output Type | 3-STATE |
| Packaging | Rail/Tube |
| Propagation Delay | 240ns |
| Quiescent Current | 20uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Technology | CMOS |
| Turn-On Delay Time | 740ns |
| RoHS | Not CompliantNo |
