CMOS Hex Non-Inverting Buffer/Converter, a logic IC featuring 6 independent non-inverting buffer elements. This surface-mount component operates within a 3V to 18V supply voltage range and offers a propagation delay of 70ns. It supports a high-level output current of -1.65mA and a low-level output current of 30mA. Packaged in a 16-TSSOP with gold contact plating, it functions across an extended temperature range of -55°C to 125°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications

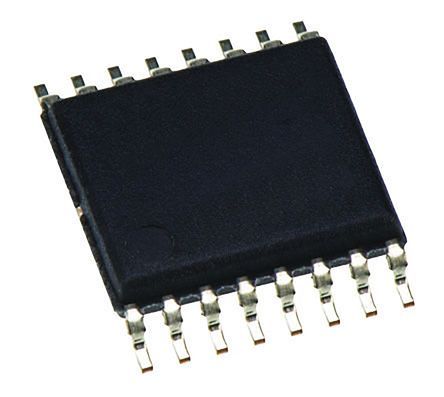

Texas Instruments CD4010BPW technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Height
1.05mm
High Level Output Current
-1.65mA
Lead Free
Lead Free
Length
5.1mm
Logic Function
Buffer
Low Level Output Current
30mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
6
Number of Bits per Element
1
Number of Channels
6
Number of Elements
6
Number of Input Lines
6
Number of Inputs
6
Number of Output Lines
6
Number of Outputs
6
Package Quantity
90
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
70ns
Quiescent Current
20uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
200ns
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4010BPW Datasheet
Download the complete datasheet for Texas Instruments CD4010BPW to view detailed technical specifications.
