CMOS decade counter/divider with decoded 7-segment display outputs. Features positive edge clock triggering, asynchronous reset, and synchronous operation. Operates from a 3V to 18V supply voltage with a maximum frequency of 16MHz. Housed in a 16-TSSOP package, this surface-mount component offers a wide operating temperature range of -55°C to 125°C.
Frequency16MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD4026BPW technical specifications.
General
| Package/Case | TSSOP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Direction | Up, Unidirectional |
| Frequency | 16MHz |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Logic Function | Counter |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 7 |
| Number of Bits per Element | 5 |
| Number of Elements | 1 |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Propagation Delay | 600ns |
| Quiescent Current | 100uA |
| Reach SVHC Compliant | No |
| Reset | Asynchronous |
| RoHS Compliant | Yes |
| Series | 4000B |
| Sync/Async | Synchronous |
| Technology | CMOS |
| Thickness | 1mm |
| Weight | 0.002183oz |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD4026BPW Datasheet
Download the complete datasheet for Texas Instruments CD4026BPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

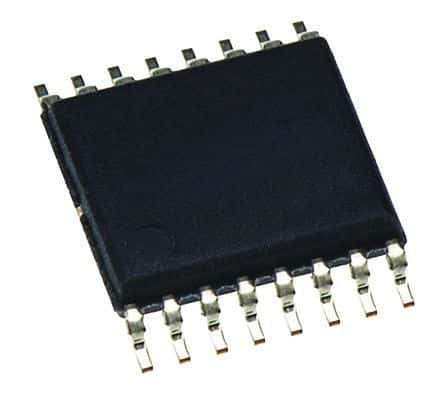

Product Images
