CMOS Hex Non-Inverting Buffer/Converter, featuring 6 independent buffer elements, each with one input and one output. This surface-mount device operates across a wide temperature range of -55°C to 125°C, with a maximum supply voltage of 20V. It offers a high-level output current of -5.2mA and a low-level output current of 8mA. The component is RoHS compliant and packaged in a 16-SO (SOP) tape and reel.
PackageSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD4050BNSR technical specifications.
General
Package/Case
SOP
Contact Plating
Gold
High Level Output Current
-5.2mA
Lead Free
Lead Free
Logic Function
Buffer
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
20V
Min Supply Voltage
-500mV
Mount
Surface Mount
Number of Bits
6
Number of Bits per Element
1
Number of Channels
6
Number of Elements
6
Number of Input Lines
6
Number of Inputs
6
Number of Output Lines
6
Number of Outputs
6
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
60ns
Quiescent Current
20uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Turn-On Delay Time
140ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4050BNSR Datasheet
Download the complete datasheet for Texas Instruments CD4050BNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

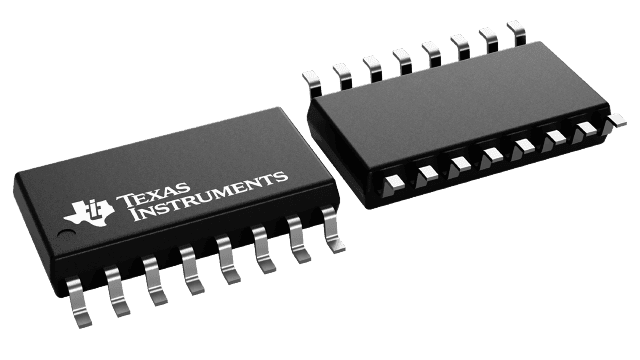

Product Images
