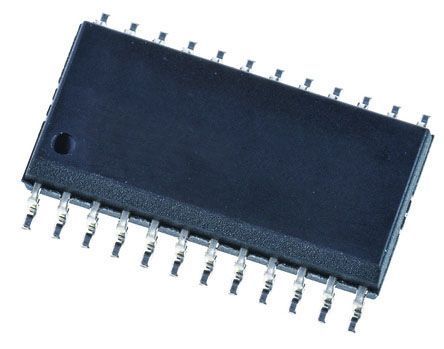

16:1 single-ended analog multiplexer, featuring a 14MHz bandwidth and 240 Ohm on-state resistance. This integrated circuit operates with a supply voltage range of 3V to 18V and supports a wide temperature range from -55°C to 125°C. Packaged in a 24-SOIC surface-mount case with gold contact plating, it offers a propagation delay of 60ns. RoHS compliant and lead-free, this component is suitable for various analog signal routing applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CD4067BM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| -3db Bandwidth | 14MHz |
| Bandwidth | 14MHz |
| Package/Case | SOIC |
| Contact Plating | Gold |
| Height | 2.35mm |
| Lead Free | Lead Free |
| Length | 15.6mm |
| Logic Function | Multiplexer, Demultiplexer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 100uA |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Switches | 1 |
| On-State Resistance | 240R |
| Operating Supply Current | 80nA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 60ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Weight | 0.022025oz |
| Width | 7.6mm |
| RoHS | Compliant |
