3-element CMOS AND gate IC, featuring 3 inputs per gate and a single output. This through-hole component operates with a supply voltage range of 3V to 18V, offering a quiescent current of 5µA and a power dissipation of 100mW. It boasts a propagation delay of 90ns and a turn-on delay time of 120ns, with output current capabilities of 3.4mA (high/low) and 6.8mA (max). Packaged in a 14-pin PDIP with gold contact plating, it operates from -55°C to 125°C and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Texas Instruments CD4073BE technical specifications.
General
Package/Case
PDIP
Contact Plating
Gold
Height
4.57mm
High Level Output Current
3.4mA
Input Capacitance
5pF
Lead Free
Lead Free
Length
19.3mm
Logic Function
AND GATE
Low Level Output Current
3.4mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
6.8mA
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
3
Number of Circuits
3
Number of Elements
3
Number of Gates
3
Number of Input Lines
3
Number of Inputs
3
Number of Output Lines
1
Number of Outputs
1
Output Current
6.8mA
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
100mW
Propagation Delay
90ns
Quiescent Current
5uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
120ns
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4073BE Datasheet
Download the complete datasheet for Texas Instruments CD4073BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

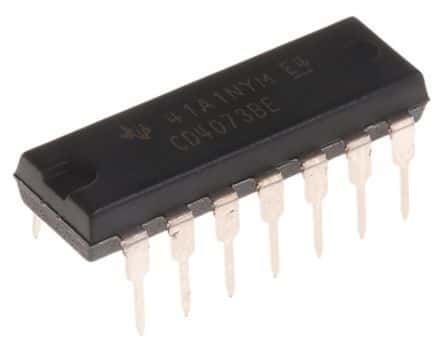

Product Images
