CMOS Programmable Timer IC, featuring a 100kHz frequency and a 20V rating. This surface mount device operates across a wide temperature range of -55°C to 125°C, with supply voltages from 3V to 18V. It offers a high level output current of -12.6mA and a low level output current of 12.6mA. The timer boasts a propagation delay of 10.5µs and a turn-on delay time of 18000ns, with a quiescent current of 100µA. Packaged in a 14-SO (SOP) with gold contact plating, this RoHS compliant component is supplied on tape and reel.
Frequency100kHz
PackageSOP
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD4541BNSR technical specifications.
General
Package/Case
SOP
Contact Plating
Gold
Frequency
100kHz
High Level Output Current
-12.6mA
Lead Free
Lead Free
Low Level Output Current
12.6mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
1
Number of Timers/Counters
1
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
100mW
Propagation Delay
10.5us
Quiescent Current
100uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
CD4541B
Supply Current
300uA
Turn-On Delay Time
18000ns
Weight
0.007348oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4541BNSR Datasheet
Download the complete datasheet for Texas Instruments CD4541BNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

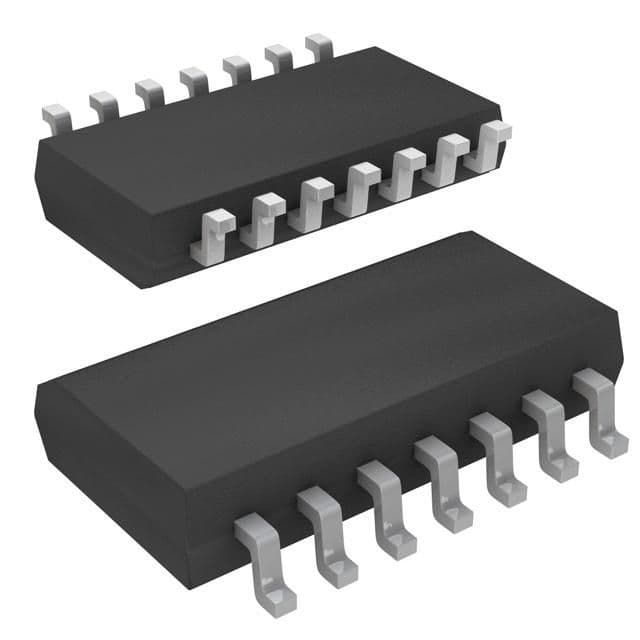

Product Images
