Texas Instruments
CD4555BF3A
CMOS Dual Binary to 1-of-4 Decoder/Demultiplexer with Outputs High on Select 16-CDIP -55 to 125
PackageCDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD4555BF3A technical specifications.
General
Package/Case
CDIP
Contact Plating
Tin, Lead
High Level Output Current
-4.2mA
Lead Free
Contains Lead
Logic Function
Demultiplexer, Decoder, Demux
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Channels
2
Number of Elements
2
Number of Inputs
2
Number of Outputs
4
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
440ns
Quiescent Current
100uA
Radiation Hardening
No
RoHS Compliant
No
Technology
CMOS
Turn-On Delay Time
440ns
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments CD4555BF3A Datasheet
Download the complete datasheet for Texas Instruments CD4555BF3A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

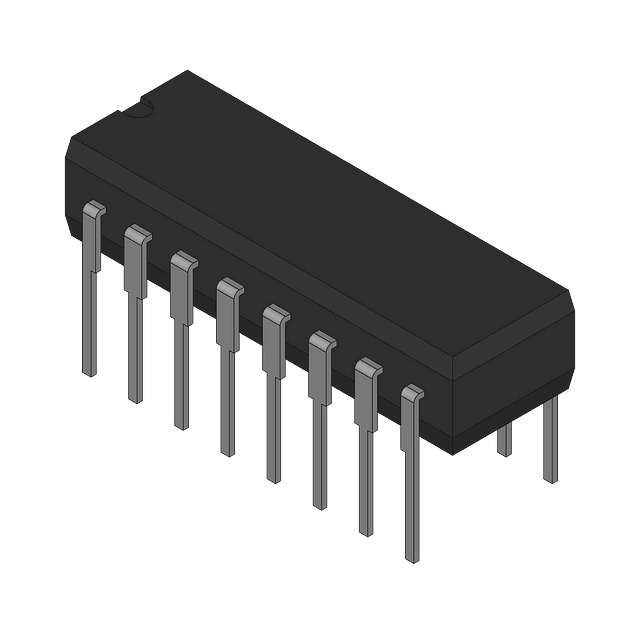

Product Images
