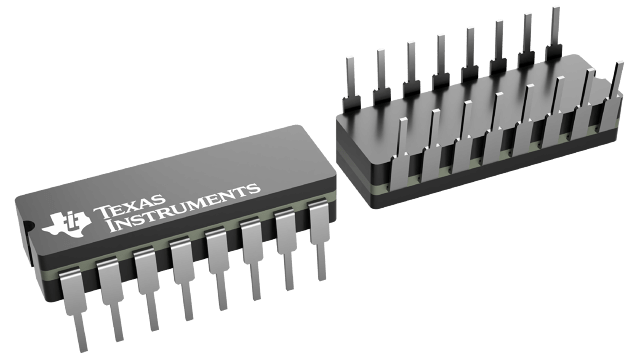

The CD54HC4538F is a dual 2-bit counter IC from Texas Instruments, featuring a 2-element multivibrator. It operates over a temperature range of -55°C to 125°C and is packaged in a DIP16 package. The device is constructed using CMOS technology and has a propagation delay of 375ns. The IC has a quiescent current of 8uA and can handle a maximum supply voltage of 6V. It is not RoHS compliant and contains lead, making it a non-lead-free device.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CD54HC4538F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Tin, Lead |
| High Level Output Current | -5.2mA |
| Lead Free | Contains Lead |
| Logic Function | Multivibrator |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Packaging | Rail/Tube |
| Propagation Delay | 375ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Technology | CMOS |
| Turn-On Delay Time | 375ns |
| RoHS | Not CompliantNo |
Download the complete datasheet for Texas Instruments CD54HC4538F to view detailed technical specifications.
