Quad 2-Input AND Gate IC, CMOS technology, operating from 1.5V to 5.5V supply. Features 4 independent AND gates, each with 2 inputs and 1 output. Offers a high level output current of -24mA and low level output current of 24mA. Operates across a wide temperature range of -55°C to 125°C with a propagation delay of 8.7ns. Packaged in a 14-pin SOIC surface mount with gold contact plating.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74AC08M96 technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
AND GATE
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.5V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
24mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
8.7ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AC
Technology
CMOS
Turn-On Delay Time
7.9ns
Weight
0.004564oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74AC08M96 Datasheet
Download the complete datasheet for Texas Instruments CD74AC08M96 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

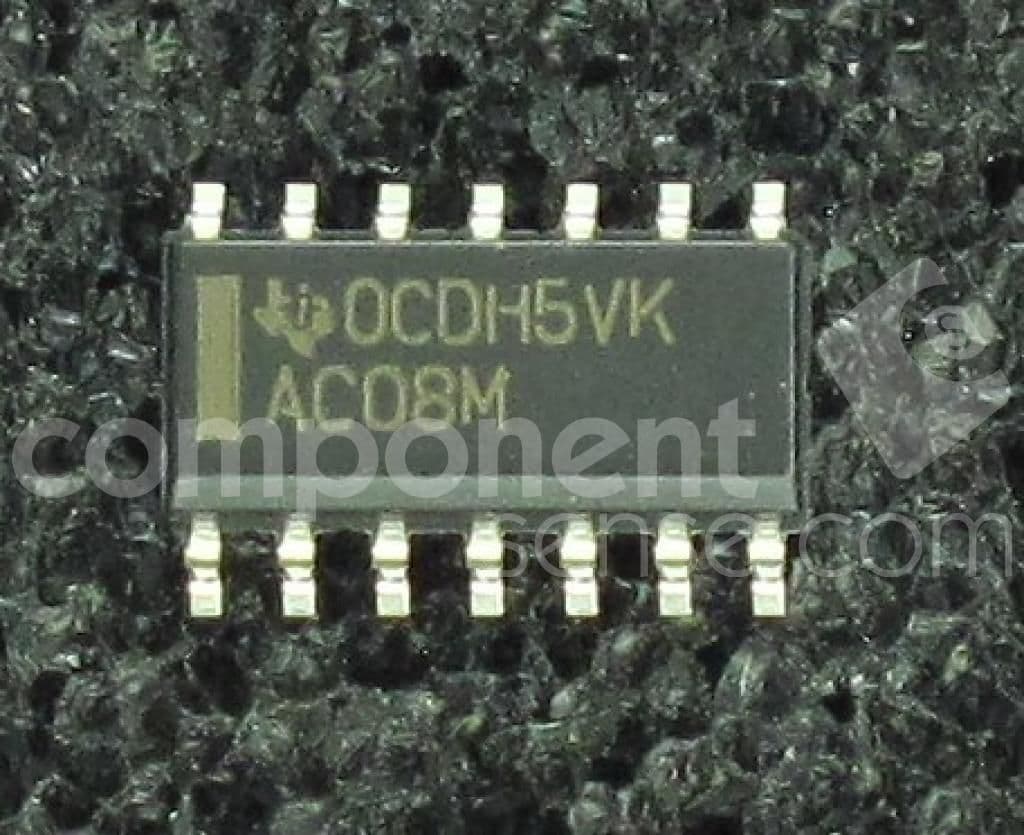

Product Images
