Octal D-Type Flip-Flop, featuring 8 bits, operates on a positive edge clock trigger and offers non-inverting logic. This CMOS integrated circuit supports a wide operating temperature range from -55°C to 125°C, with supply voltages from 1.5V to 5.5V. It boasts a maximum frequency of 100MHz and a propagation delay of 169ns. The surface mountable SOIC package is gold-plated and lead-free, suitable for demanding applications.
Frequency100MHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74AC273M technical specifications.
General
Package/Case
SOIC
Clock Edge Trigger Type
Positive Edge
Contact Plating
Gold
Frequency
100MHz
Height
2.35mm
High Level Output Current
-24mA
Lead Free
Lead Free
Length
12.8mm
Logic Function
D-Type, Flip-Flop
Low Level Output Current
24mA
Max Frequency
100MHz
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.5V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
8
Number of Elements
1
Number of Gates
8
Number of Input Lines
8
Number of Inputs
1
Number of Output Lines
8
Output Current
24mA
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
169ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
3.4ns
Weight
0.017662oz
Width
7.52mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74AC273M Datasheet
Download the complete datasheet for Texas Instruments CD74AC273M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

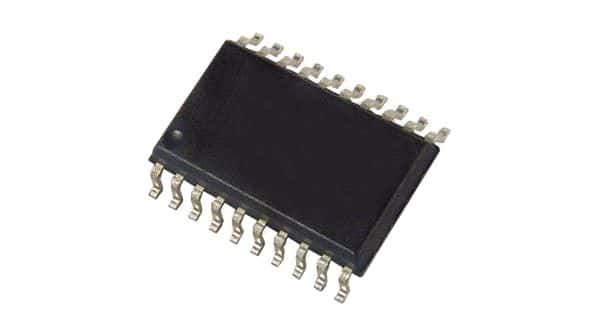

Product Images
