Octal buffer/line driver featuring 8 non-inverting, 3-state outputs. This CMOS buffer operates with a supply voltage range of 1.5V to 5.5V and offers a propagation delay of 7.8ns. Designed for surface mounting, it comes in a 20-SOIC package with gold contact plating. The device supports a wide operating temperature range from -55°C to 125°C, with a low quiescent current of 8uA.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74AC541M96 technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.5V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Elements
1
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
8
Number of Outputs
8
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
7.8ns
Quiescent Current
8uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AC
Technology
CMOS
Turn-On Delay Time
150ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74AC541M96 Datasheet
Download the complete datasheet for Texas Instruments CD74AC541M96 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

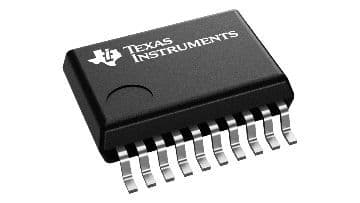

Product Images
