Dual-element monostable multivibrator IC, featuring two independent circuits. Operates with a supply voltage range of 2V to 6V, with a typical 5V operating voltage. Offers a propagation delay of 25ns and a turn-on delay time of 54ns. Supports ±5.2mA output current and a quiescent current of 8µA. Packaged in a 16-pin TSSOP for surface mounting, with gold contact plating. Designed for operation across a wide temperature range of -55°C to 125°C.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74HC123PWR technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
High Level Output Current
-5.2mA
Independent Circuits
2
Lead Free
Lead Free
Logic Function
Multivibrator
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
2
Number of Circuits
2
Number of Elements
2
Operating Supply Voltage
5V
Output Current
5.2mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
25ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74HC
Technology
CMOS
Turn-On Delay Time
54ns
Weight
0.002183oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC123PWR Datasheet
Download the complete datasheet for Texas Instruments CD74HC123PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

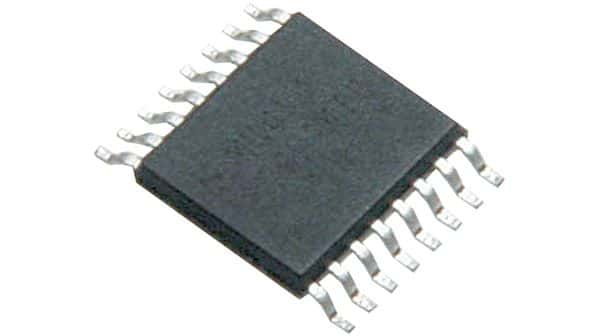

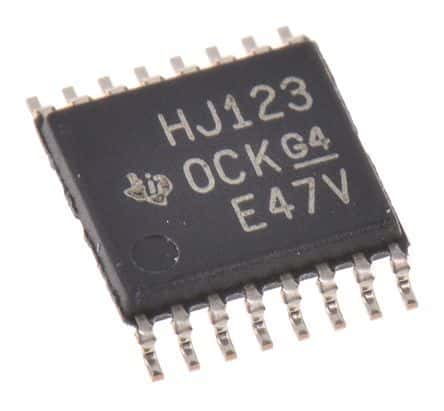

Product Images
