Dual 4-input NAND gate IC featuring high-speed CMOS technology. Operates with a supply voltage range of 2V to 6V, offering a propagation delay of 26ns and turn-on delay of 21ns. Supports output currents of up to 5.2mA (both high and low level) and a quiescent current of 2uA. Packaged in a 14-pin PDIP with gold contact plating, suitable for through-hole mounting. Designed for operation across a wide temperature range of -55°C to 125°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD74HC20E technical specifications.
General
Package/Case
PDIP
Contact Plating
Gold
High Level Output Current
-5.2mA
Lead Free
Lead Free
Logic Function
NAND GATE
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
5.2mA
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
2
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Input Lines
4
Number of Inputs
4
Number of Output Lines
1
Number of Outputs
1
Output Current
5.2mA
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
26ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
21ns
Weight
0.032734oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC20E Datasheet
Download the complete datasheet for Texas Instruments CD74HC20E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

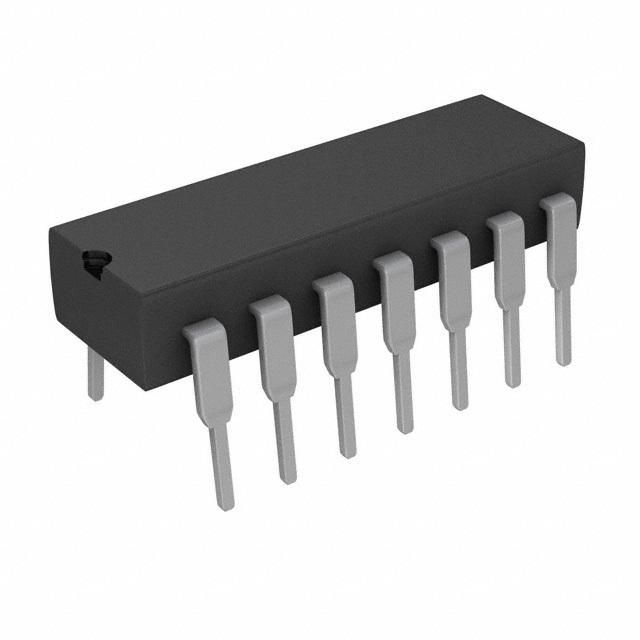

Product Images
