High-speed CMOS logic 14-stage binary counter, operating from a 2V to 6V supply. Features negative edge clock triggering, asynchronous reset, and an up, unidirectional count direction. Achieves a maximum frequency of 35MHz with a propagation delay of 255ns. Packaged in a 16-PDIP with gold contact plating, suitable for through-hole mounting. Operates across a wide temperature range of -55°C to 125°C.
Frequency35MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD74HC4020E technical specifications.
General
| Package/Case | PDIP |
| Clock Edge Trigger Type | Negative Edge |
| Contact Plating | Gold |
| Direction | Up, Unidirectional |
| Frequency | 35MHz |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 19.69mm |
| Logic Function | Counter |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 14 |
| Number of Bits per Element | 14 |
| Number of Elements | 1 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 255ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Asynchronous |
| RoHS Compliant | Yes |
| Series | 74HC |
| Technology | CMOS |
| Turn-On Delay Time | 255ns |
| Weight | 0.03357oz |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD74HC4020E Datasheet
Download the complete datasheet for Texas Instruments CD74HC4020E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

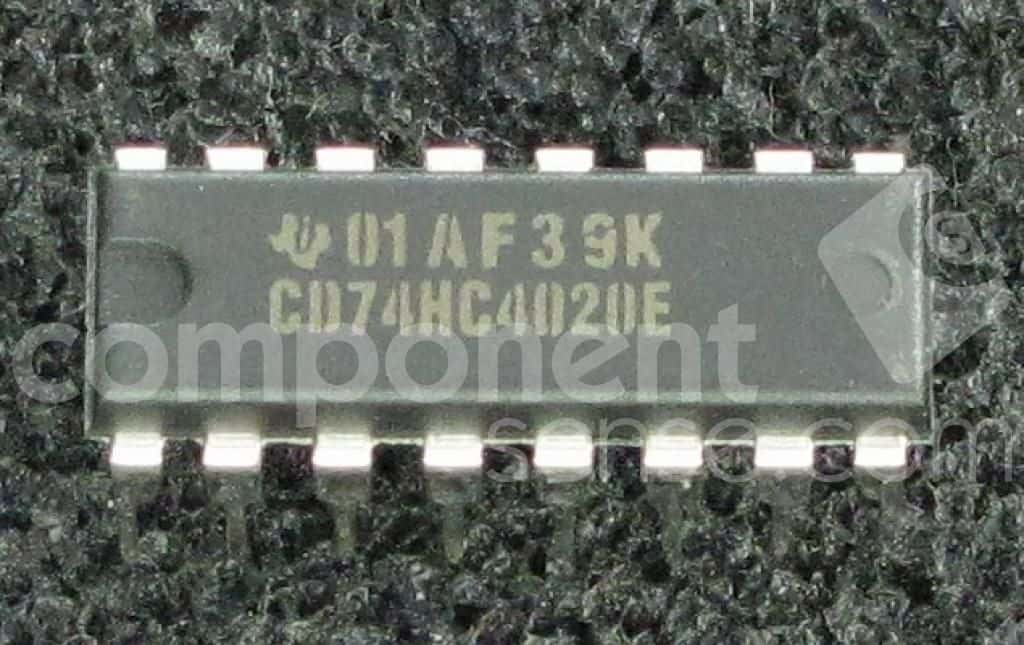

Product Images
