Four-channel analog switch featuring 1:1 (SPST) configuration and a 200MHz -3dB bandwidth. Operates with a single supply voltage range of 2V to 10V, supporting a maximum operating temperature of 125°C. Surface mountable in a 14-TSSOP package with gold contact plating. Delivers 25mA high and low level output current with a low maximum supply current of 16uA.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74HC4066PW technical specifications.
General
| -3db Bandwidth | 200MHz |
| Package/Case | TSSOP |
| Contact Plating | Gold |
| High Level Output Current | 25mA |
| Lead Free | Lead Free |
| Low Level Output Current | 25mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 16uA |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Weight | 0.002018oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD74HC4066PW Datasheet
Download the complete datasheet for Texas Instruments CD74HC4066PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

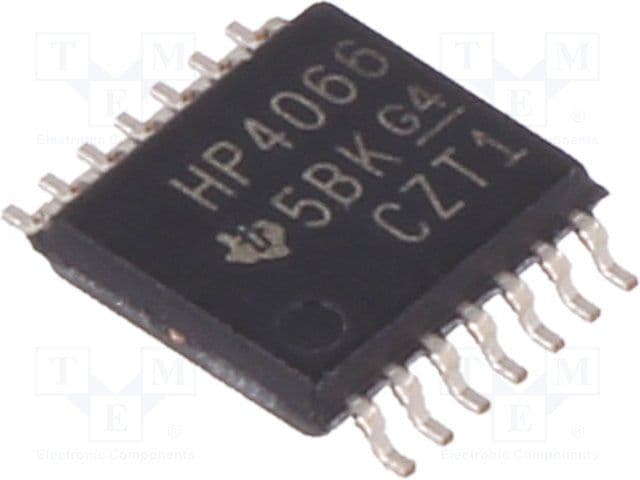

Product Images
