16:1 analog multiplexer, 1-channel, operating from a 2V to 6V supply. Features a -3dB bandwidth of 89MHz and a propagation delay of 75ns. This surface mount component is housed in a 24-SOIC package with dimensions of 15.4mm (L) x 7.52mm (W) x 2.35mm (H). It offers a low maximum supply current of 8µA and operates across a temperature range of -55°C to 125°C. RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74HC4067M96 technical specifications.
General
| -3db Bandwidth | 89MHz |
| Bandwidth | 89MHz |
| Package/Case | SOIC |
| Height | 2.35mm |
| Lead Free | Lead Free |
| Length | 15.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 8uA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Nominal Supply Current | 8uA |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Package Quantity | 2000 |
| Packaging | Cut Tape |
| Propagation Delay | 75ns |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Weight | 0.028572oz |
| Width | 7.52mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD74HC4067M96 Datasheet
Download the complete datasheet for Texas Instruments CD74HC4067M96 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

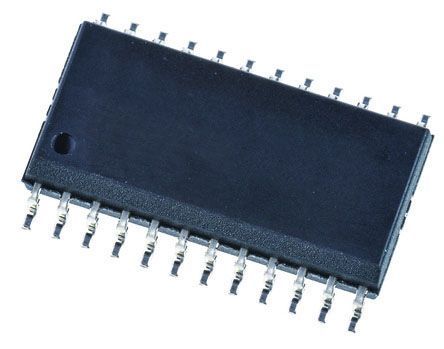

Product Images
