High-speed CMOS logic 4-to-16 line decoder/demultiplexer with input latches. Features include a 4-bit input, 16 non-inverting outputs, and a propagation delay of 23ns. Operates with a supply voltage range of 2V to 6V and a wide temperature range from -55°C to 125°C. This through-hole mounted component utilizes CMOS technology and is RoHS compliant.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74HC4514E technical specifications.
General
Package/Case
PDIP
Contact Plating
Gold
High Level Output Current
-5.2mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Demultiplexer, Decoder, Latch, Demux
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
4
Number of Elements
1
Number of Input Lines
4
Number of Inputs
4
Number of Output Lines
16
Number of Outputs
16
Package Quantity
15
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
23ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Supply Type
Single
Technology
CMOS
Turn-On Delay Time
415ns
Weight
0.131759oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC4514E Datasheet
Download the complete datasheet for Texas Instruments CD74HC4514E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

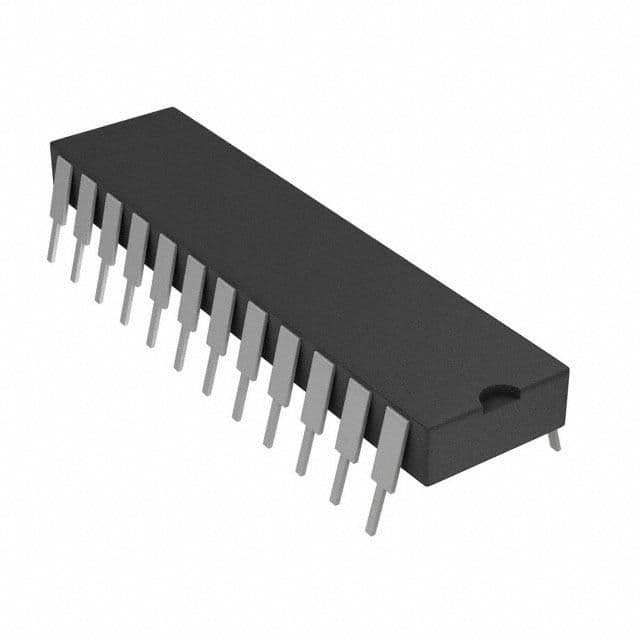

Product Images
