High-speed CMOS logic 4-to-16 line decoder/demultiplexer with input latches. Features 4 input lines, 16 output lines, and a single independent circuit. Operates with a minimum supply voltage of 2V and a maximum of 6V, offering a propagation delay of 23ns. Packaged in a 24-PDIP with gold contact plating, suitable for through-hole mounting. This RoHS compliant component functions as a demultiplexer, decoder, and latch, with a wide operating temperature range from -55°C to 125°C.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74HC4514EN technical specifications.
General
| Package/Case | PDIP |
| Contact Plating | Gold |
| Height | 4.57mm |
| High Level Output Current | -5.2mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Length | 31.64mm |
| Logic Function | Demultiplexer, Decoder, Latch, Demux |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Elements | 1 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 16 |
| Number of Outputs | 16 |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 23ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 415ns |
| Weight | 0.061853oz |
| Width | 6.73mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD74HC4514EN Datasheet
Download the complete datasheet for Texas Instruments CD74HC4514EN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

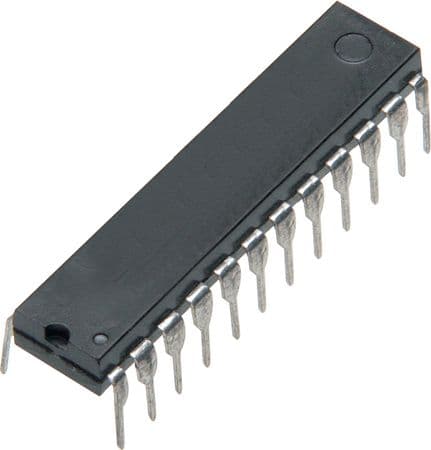

Product Images
