8-bit shift register with 3-state output, featuring CMOS technology and a unidirectional data flow. This surface mount component operates from a 2V to 6V supply voltage, with a nominal supply current of 8µA. It offers 8 bits of storage and 9 outputs, with a propagation delay of 34ns. The device is housed in a 16-SOIC package with gold contact plating, suitable for operation across a -55°C to 125°C temperature range.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74HC595M96 technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
Direction
Unidirectional
Height
1.75mm
Lead Free
Lead Free
Length
9.9mm
Logic Function
Shift Register
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Nominal Supply Current
8uA
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
16
Number of Elements
1
Number of Input Lines
3
Number of Inputs
1
Number of Output Lines
3
Number of Outputs
9
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
34ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Thickness
1.58mm
Turn-On Delay Time
300ns
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC595M96 Datasheet
Download the complete datasheet for Texas Instruments CD74HC595M96 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

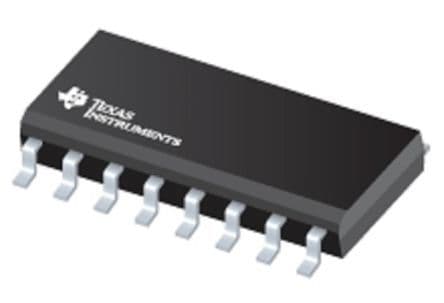

Product Images
