Dual-element monostable multivibrator, CMOS technology, operating from 4.5V to 5.5V with a typical 5V supply. Features two independent circuits, each with a 25ns propagation delay and 68ns turn-on delay. Supports a high-level output current of -4mA and a low-level output current of 4mA. Packaged in a 16-pin SOIC surface mount with gold contact plating, suitable for operation between -55°C and 125°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74HCT123M technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
Height
1.58mm
High Level Output Current
-4mA
Independent Circuits
2
Lead Free
Lead Free
Length
9.9mm
Logic Function
Multivibrator
Low Level Output Current
4mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Voltage
5V
Output Current
4mA
Package Quantity
40
Packaging
Rail/Tube
Propagation Delay
25ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74HCT
Technology
CMOS
Thickness
1.58mm
Turn-On Delay Time
68ns
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HCT123M Datasheet
Download the complete datasheet for Texas Instruments CD74HCT123M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

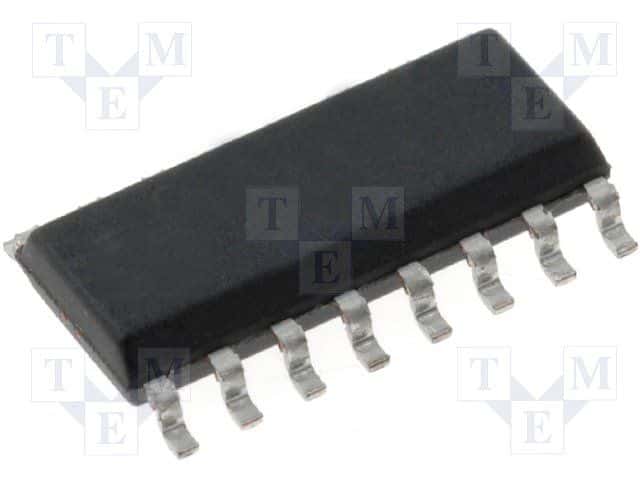

Product Images
