High-speed CMOS logic 3-to-8 line decoder/demultiplexer, featuring inverting and non-inverting outputs. This surface-mount device operates with a 5V supply voltage, supporting a range of 4.5V to 5.5V. It offers 3 input lines and 8 output lines, with a propagation delay of 35ns and a bandwidth of 28MHz. The component is packaged in a 16-SOIC format, suitable for operation between -55°C and 125°C.
PackageSOIC
MountingSurface Mount
PolarityInverting
Power950mW
Quick Jump:
Technical Specifications
Texas Instruments CD74HCT138M96 technical specifications.
General
Bandwidth
28MHz
Package/Case
SOIC
Contact Plating
Gold
High Level Output Current
-4mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Demultiplexer, Decoder
Low Level Output Current
4mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Input Lines
3
Number of Inputs
3
Number of Output Lines
8
Number of Outputs
8
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Inverting
Power Dissipation
950mW
Propagation Delay
35ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HCT
Supply Type
Single
Technology
CMOS
Turn-On Delay Time
60ns
Weight
0.004998oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HCT138M96 Datasheet
Download the complete datasheet for Texas Instruments CD74HCT138M96 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

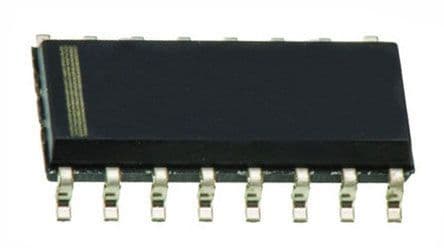

Product Images
