Dual retriggerable monostable multivibrator IC, featuring two independent circuits. Operates with a 5V supply voltage (4.5V to 5.5V range) and CMOS technology. Offers a propagation delay of 25ns and a turn-on delay time of 68ns. Designed for surface mounting in a 16-SOIC package with gold contact plating. Supports 4mA high and low level output current.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74HCT423M96 technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
High Level Output Current
-4mA
Independent Circuits
2
Lead Free
Lead Free
Logic Function
Multivibrator
Low Level Output Current
4mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
2
Number of Elements
2
Operating Supply Voltage
5V
Output Current
4mA
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
25ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74HCT
Technology
CMOS
Turn-On Delay Time
68ns
Weight
0.004998oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HCT423M96 Datasheet
Download the complete datasheet for Texas Instruments CD74HCT423M96 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

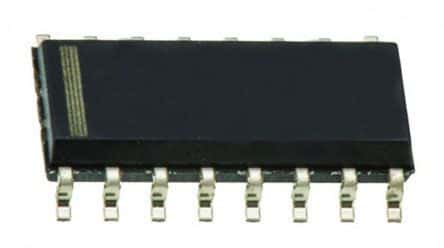

Product Images
