100MHz, 3.3V, 10-output clock driver featuring LVTTL input and tri-state capabilities. This surface-mount SOIC package component operates from a 3V to 3.6V supply, with a typical operating voltage of 3.3V. Propagation and turn-on delay times are 6.6ns, with a quiescent current of 25mA and a supply current of 300uA. Designed for a temperature range of -40°C to 85°C, it is RoHS compliant and lead-free.
Frequency100MHz
PackageSOIC
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDC351IDW technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| Frequency | 100MHz |
| Input | LVTTL |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 10 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 6.6ns |
| Quiescent Current | 25mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CDC351 |
| Supply Current | 300uA |
| Turn-On Delay Time | 6.6ns |
| Weight | 0.022025oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CDC351IDW Datasheet
Download the complete datasheet for Texas Instruments CDC351IDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

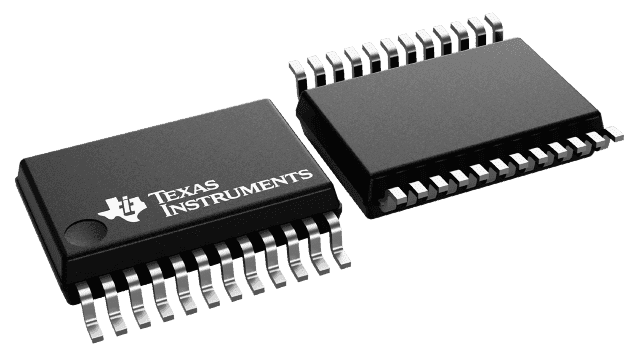

Product Images
