Clock buffer and driver featuring a low-jitter clock multiplier and divider with programmable delay and phase alignment. Operates at frequencies up to 500MHz with LVTTL input. This integrated circuit supports a 3V to 3.6V operating supply voltage and is housed in a 24-SSOP package for surface mounting. It offers a single circuit with a single output, designed for operation between -40°C and 85°C.
Frequency500MHz
PackageSSOP
Current70mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDC5801ADBQR technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
Frequency
500MHz
Input
LVTTL
Lead Free
Contains Lead
Max Frequency
500MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Outputs
1
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
PLL
Yes
Power Dissipation
1.4W
Radiation Hardening
No
RoHS Compliant
Yes
Series
CDC5801A
Supply Current
70mA
Weight
0.004568oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CDC5801ADBQR Datasheet
Download the complete datasheet for Texas Instruments CDC5801ADBQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

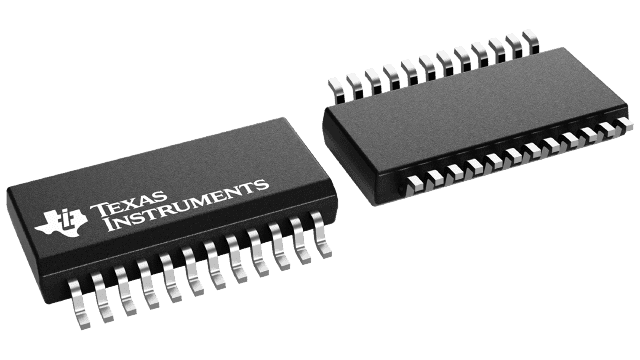

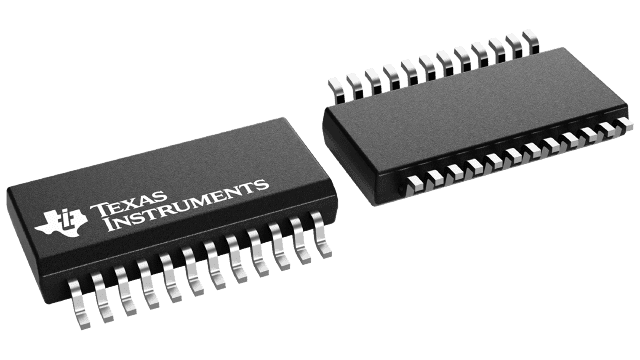

Product Images
