The CDC7005GVAT is a clock buffer IC with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It operates on a supply voltage of 3.3V and has a maximum frequency of 800MHz. The device is packaged in a BGA-64 package and is suitable for surface mount applications. It is not RoHS compliant and contains lead.
Frequency800MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDC7005GVAT technical specifications.
General
| Package/Case | BGA |
| Input | LVCMOS |
| Lead Free | Contains Lead |
| Max Frequency | 800MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 5 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| PLL | No |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | CDC7005 |
| Weight | 0.006004oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments CDC7005GVAT Datasheet
Download the complete datasheet for Texas Instruments CDC7005GVAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

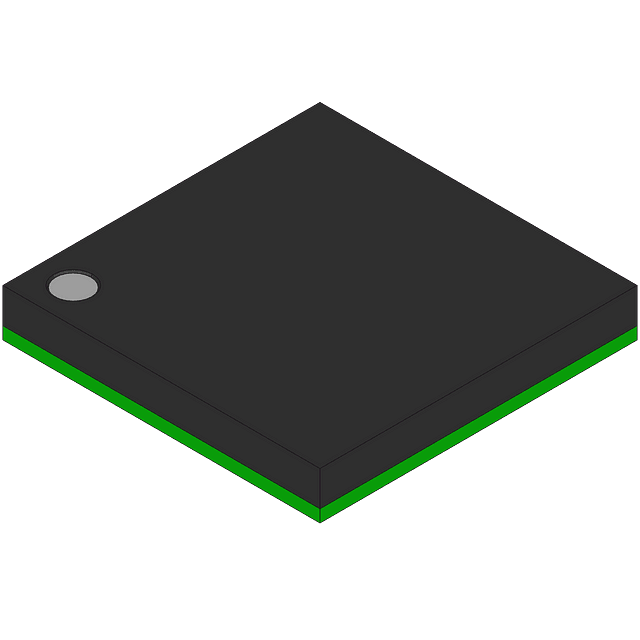

Product Images
