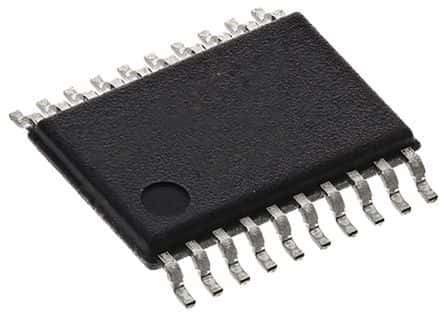

Clock Generator IC, featuring a 1MHz to 200MHz input range and 6 outputs, operates from a 3V to 3.6V supply with a typical 3.3V operating voltage. This surface mount component, housed in a 20-pin TSSOP package with gold contact plating, offers a maximum output frequency of 300MHz. It includes a Phase-Locked Loop (PLL) and communicates via an I2C interface. Operating across a temperature range of -40°C to 85°C, this RoHS compliant integrated circuit is delivered in a rail/tube package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CDCE706PW datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Frequency | 54MHz |
| Height | 1.2mm |
| Input | Crystal |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 6.4mm |
| Max Frequency | 300MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 3 |
| Number of Outputs | 6 |
| Operating Supply Current | 90mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 70 |
| Packaging | Rail/Tube |
| PLL | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 115mA |
| Thickness | 1mm |
| Weight | 0.002716oz |
| Width | 4.3mm |
| RoHS | Compliant |
