Texas Instruments
CDCL1810RGZT

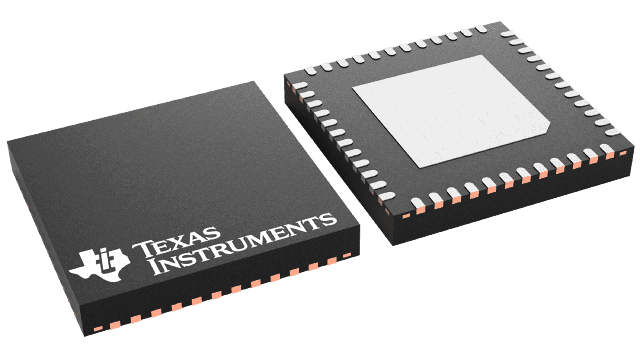

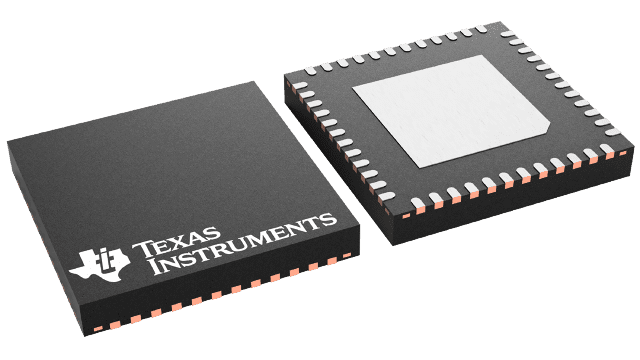

1.8V 1-to-10 High Performance Differential Clock Buffer 48-VQFN -40 to 85
Frequency650MHz
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDCL1810RGZT technical specifications.
General
Package/Case
VQFN EP
Contact Plating
Gold
Frequency
650MHz
Input
LVDS
Lead Free
Lead Free
Max Frequency
650MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Mount
Surface Mount
Nominal Supply Current
212mA
Number of Circuits
1
Number of Outputs
10
Operating Supply Voltage
1.8V
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
3ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
CDCL1810
Turn-On Delay Time
3ns
Weight
0.004868oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CDCL1810RGZT Datasheet
Download the complete datasheet for Texas Instruments CDCL1810RGZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
